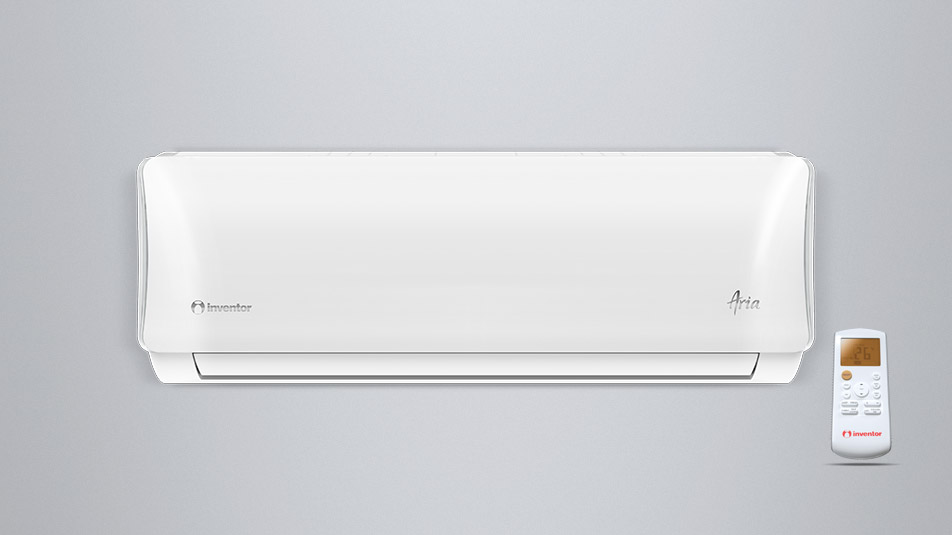

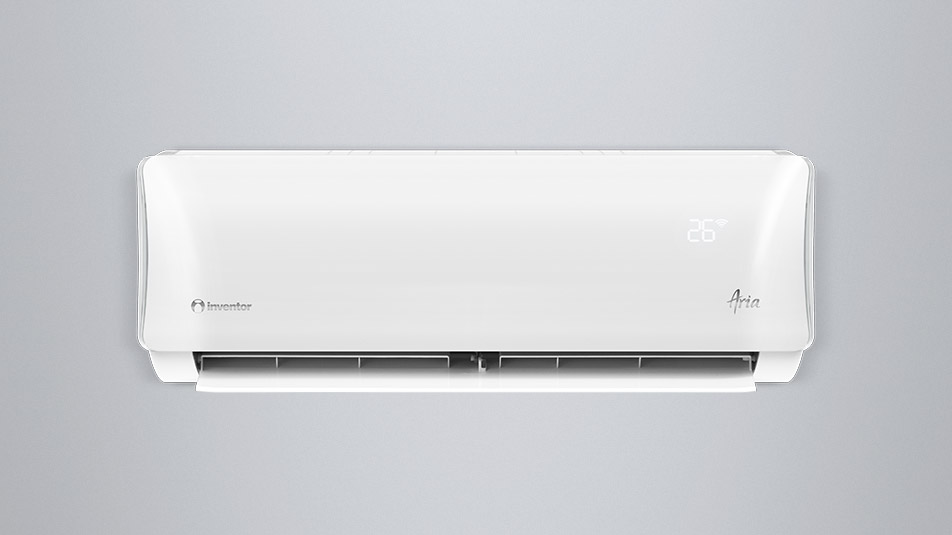

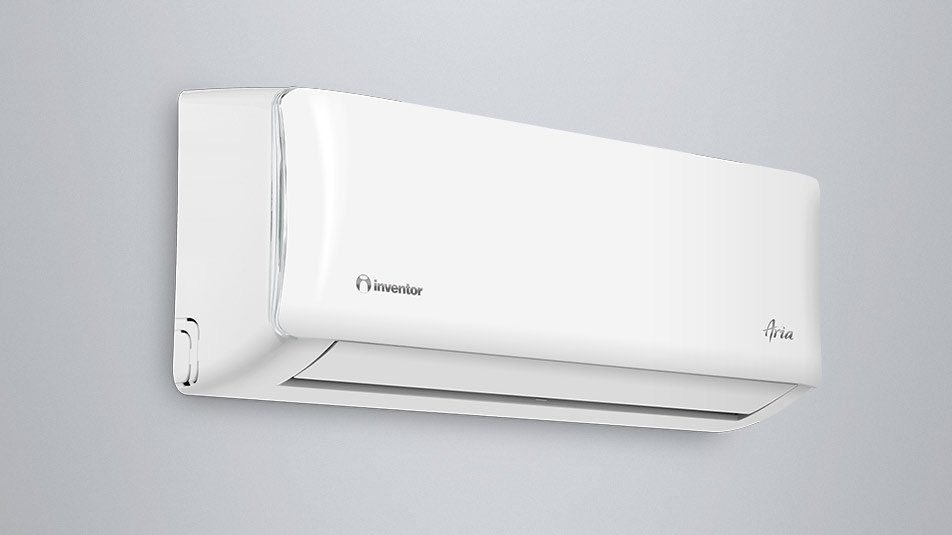

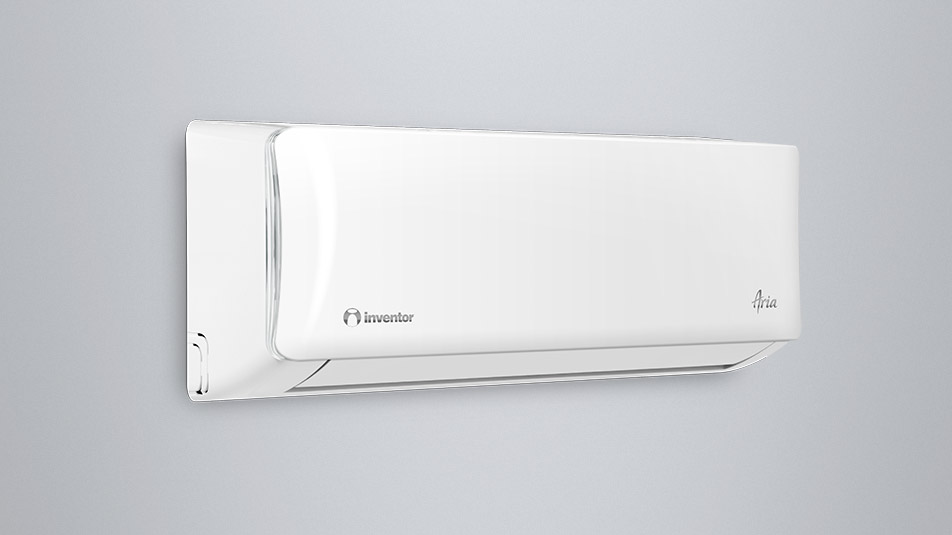

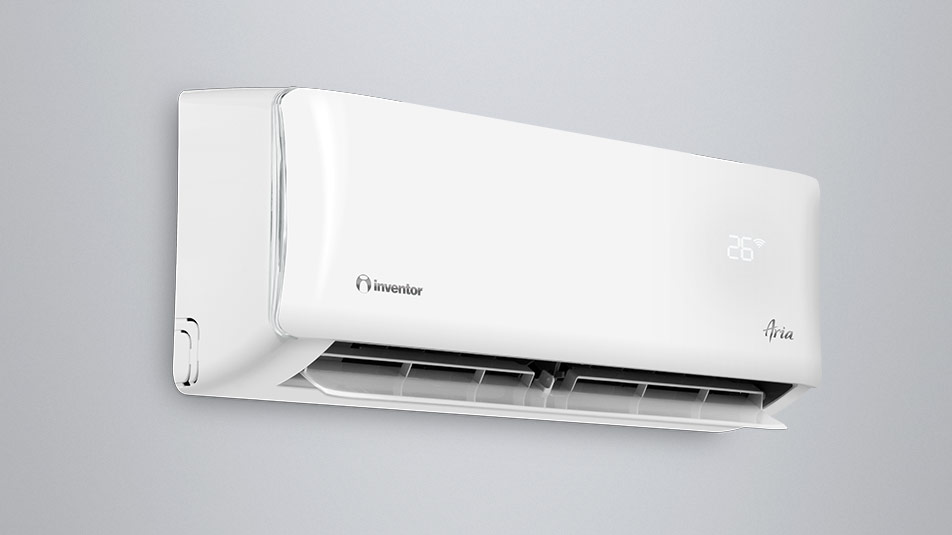

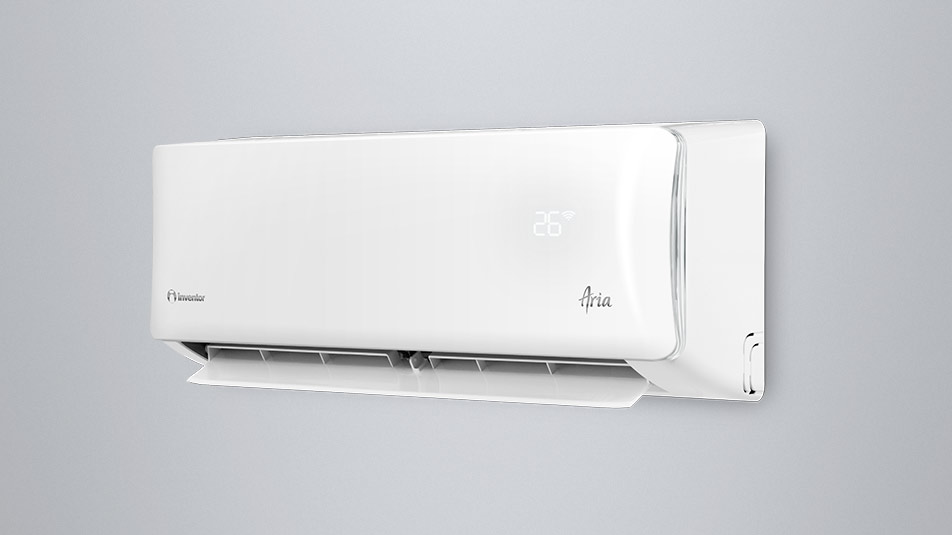

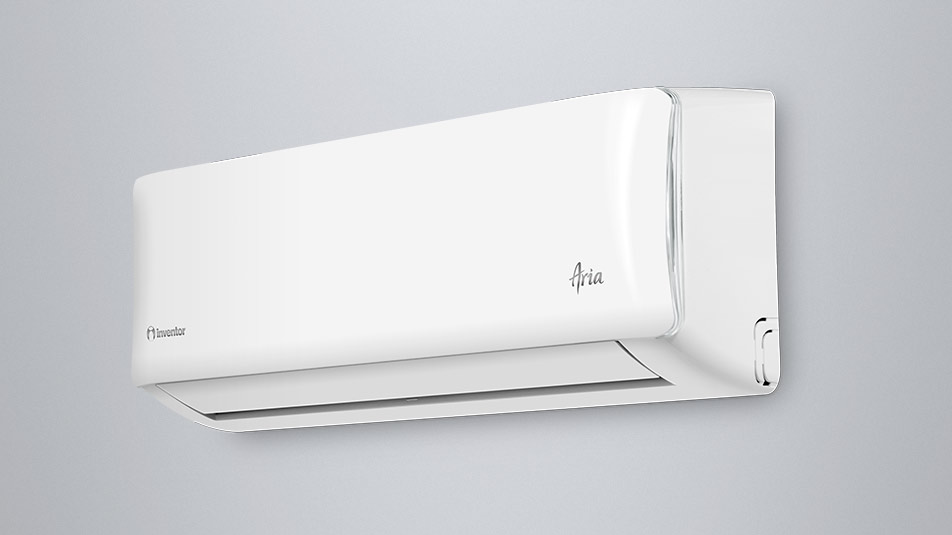

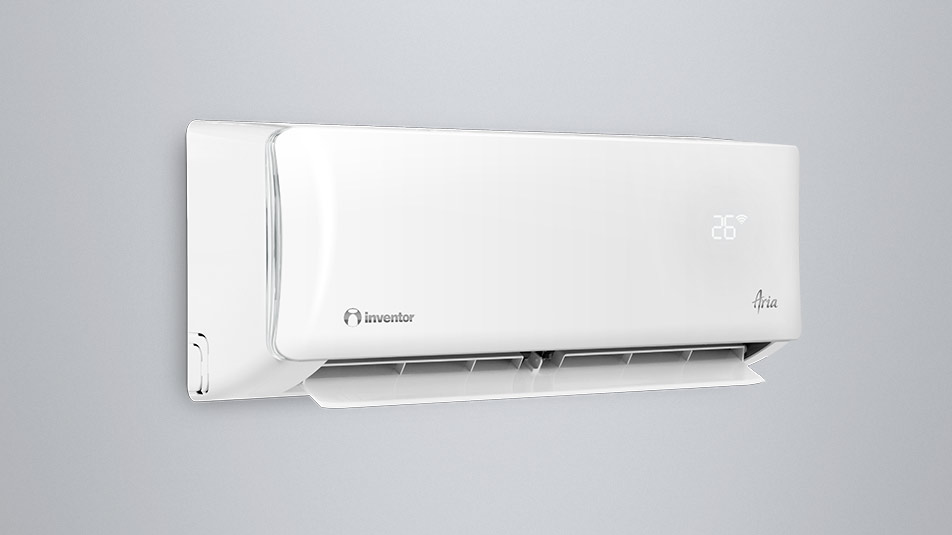

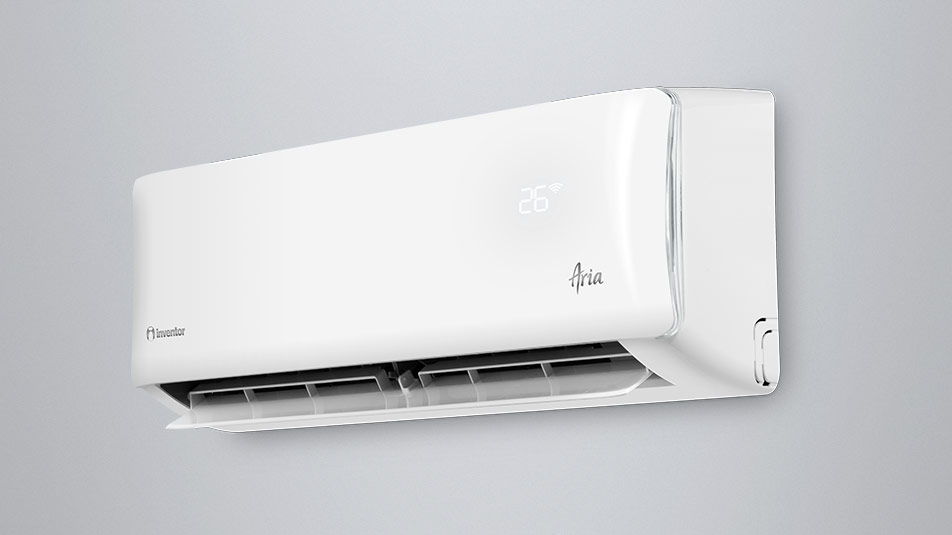

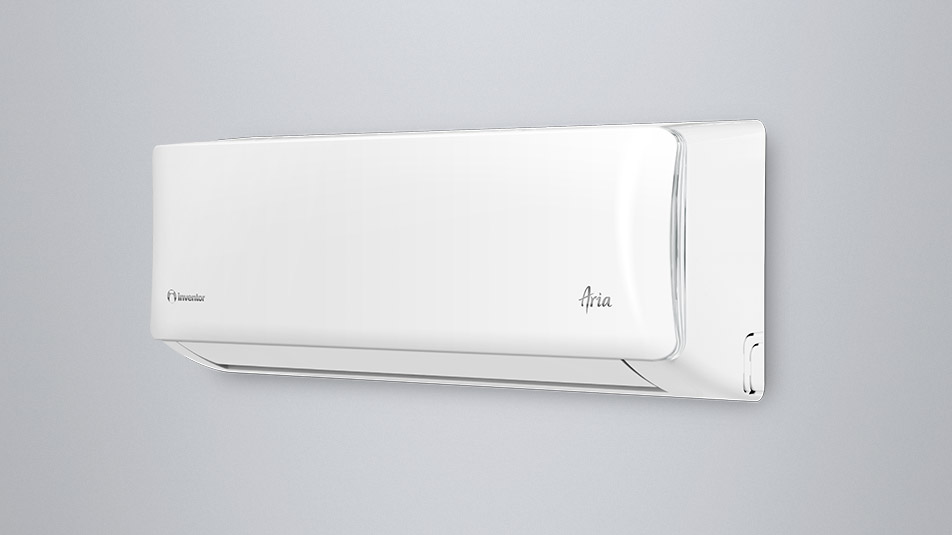

Indoor Aria Multi Split units, quite and economical!

  • Control your climate easily from anywhere with your Tablet or Smartphone
  • Create a clean and healthy atmosphere with the ionizer filter
  • 4-way airflow for uniform air distribution throughout the room
  • Excellent protection thanks to the golden hydrophilic coating of the element
  • Ideal conditions where you want them thanks to Follow Me mode

Control your climate easily from wherever you are, with your Smartphone or Tablet. Free download the Invmate II or the Ewpe or the Smart Clima application via Google Play & App Store, depending on the series you have and achieve optimal temperature conditions with great energy savings.

The ions released in the air, give you a fresh and clean atmosphere, by capturing dust and smoke, offering wellness and high quality room conditions.

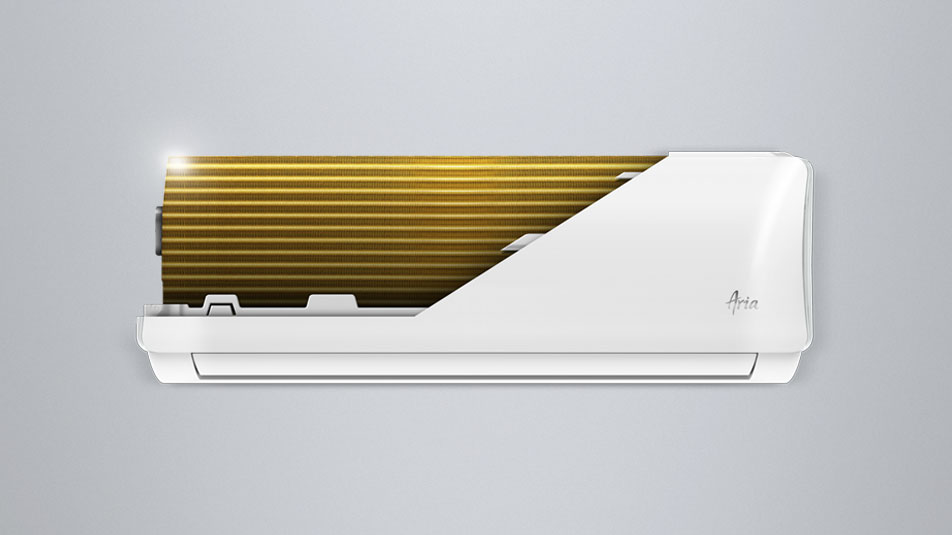

The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!

A smart sensor is located on the remote control. When the Follow Me function is activated the set temperature synchronizes with the smart sensor. Your set temperature will follow you wherever you and the remote go, offering extra comfort and energy savings.

Inventor air conditioners present the innovative air-conditioning unit management "HOTEL MENU". The HOTEL MENU is a set of features specifically designed to help better and more economical operation of air conditioners installed in hotel units.

ASK US FOR A QUOTE
  • MODEL AR1MVI - 07WFR
  • Cooling Capacity 8.000 Btu / h
  • Cooling Capacity 2.34 kWatt
  • Heating Capacity 9.000 Btu / h
  • Heating Capacity 2.64 kWatt
  • Voltage / Frequency / Phase 220-240 / 50 / 1 V / Hz / Ph
  • Current Input - Cooling 0.11 A
  • Current Input - Heating 0.11 A
  • Power Input - Cooling 24 W
  • Power Input - Heating 24 W
  • Air Flow Volume (High / Medium / Low) 400 / 300 / 230 m3 / h
  • Noise Level (Low / Medium / High) (dB ) 22 / 31 / 36 A
  • Sound Power Level (dB ) 52 A
  • Dimensions WxDxH 722 × 187 × 290 mm
  • Net Weight 7.4 kg
  • Liquid Line - Gas Line 1 / 4” - 3 / 8”
  • MODEL AR2MVI - 09WiFi
  • Cooling Capacity 9.200 Btu / h
  • Cooling Capacity 2.69 kWatt
  • Heating Capacity 10.000 Btu / h
  • Heating Capacity 2.93 kWatt
  • Voltage / Frequency / Phase 220-240 / 50 / 1 V / Hz / Ph
  • Current Input - Cooling 0.11 A
  • Current Input - Heating 0.11 A
  • Power Input - Cooling 24 W
  • Power Input - Heating 24 W
  • Air Flow Volume (High / Medium / Low) 521 / 429 / 259 m3 / h
  • Noise Level (Low / Medium / High) (dB ) 20 / 22 / 29 / 37 A
  • Sound Power Level (dB ) 53 A
  • Dimensions WxDxH 722 × 187 × 290 mm
  • Net Weight 7.4 kg
  • Liquid Line - Gas Line 1 / 4” - 3 / 8”
  • MODEL AR2MVI - 12WiFi
  • Cooling Capacity 12.000 Btu / h
  • Cooling Capacity 3.52 kWatt
  • Heating Capacity 13.000 Btu / h
  • Heating Capacity 3.81 kWatt
  • Voltage / Frequency / Phase 220-240 / 50 / 1 V / Hz / Ph
  • Current Input - Cooling 0.11 A
  • Current Input - Heating 0.11 A
  • Power Input - Cooling 24 W
  • Power Input - Heating 24 W
  • Air Flow Volume (High / Medium / Low) 539 / 478 / 294 m3 / h
  • Noise Level (Low / Medium / High) (dB ) 21 / 22 / 30 / 38 A
  • Sound Power Level (dB ) 55 A
  • Dimensions WxDxH 802 × 189 × 297 mm
  • Net Weight 8.2 kg
  • Liquid Line - Gas Line 1 / 4” - 3 / 8”
  • MODEL AR2MVI - 18WiFi
  • Cooling Capacity 18.000 Btu / h
  • Cooling Capacity 5.28 kWatt
  • Heating Capacity 19.000 Btu / h
  • Heating Capacity 5.86 kWatt
  • Voltage / Frequency / Phase 220-240 / 50 / 1 V / Hz / Ph
  • Current Input - Cooling 0.15 A
  • Current Input - Heating 0.15 A
  • Power Input - Cooling 34 W
  • Power Input - Heating 34 W
  • Air Flow Volume (High / Medium / Low) 750 / 505 / 420 m3 / h
  • Noise Level (Low / Medium / High) (dB ) 29 / 34 / 42 A
  • Sound Power Level (dB ) 57 A
  • Dimensions WxDxH 965 × 215 × 319 mm
  • Net Weight 9 kg
  • Liquid Line - Gas Line 1 / 4” - 1 / 2”
  • MODEL AR2MVI - 24WiFi
  • Cooling Capacity 25.000 Btu / h
  • Cooling Capacity 7.03 kWatt
  • Heating Capacity 26.000 Btu / h
  • Heating Capacity 7.91 kWatt
  • Voltage / Frequency / Phase 220-240 / 50 / 1 V / Hz / Ph
  • Current Input - Cooling 0.28 A
  • Current Input - Heating 0.28 A
  • Power Input - Cooling 62 W
  • Power Input - Heating 62 W
  • Air Flow Volume (High / Medium / Low) 1.050 / 750 / 560 m3 / h
  • Noise Level (Low / Medium / High) (dB ) 26 / 30 / 40 / 46 A
  • Sound Power Level (dB ) 60 A
  • Dimensions WxDxH 1,080,335,226 mm
  • Net Weight 12 kg
  • Liquid Line - Gas Line 3 / 8” - 5 / 8”

With the Sleep Mode, the air conditioner adjusts the room temperature for perfect sleeping conditions and great energy savings.

Sleep Mode

This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.

Turbo Mode

The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.

R32 ECO Refrigerant

Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.

Excellent Heating Performance Under -15°C

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.

Auto Restart

Set the unit to start and stop automatically in a 24h period.

24-hour Timer

The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.

Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.

Take advantage of the 4 choices to adjust the indoor unit’s fan speed and benefit from the Filter Cleaning Reminder mode, the Louver Position Memory, the Temperature Compensation sensor and the Higher/ Lower Temperature settings to create the ideal conditions in your place.

The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
